para Apple Chip-livre Bios Ler e Escrever A1534 1466 17061707 1708 Efi Solução id Firmware Lock
R$ 235,62
DÚVIDAS?
Envie um email para:
Dispositivos IOT Segurança e Proteção
Vídeo de Demonstração do Produto
Opção de Compra e tempo de entrega
Ficha técnica do produto
| Características | Especificações |
|---|---|
| Origem | CN (origem) |

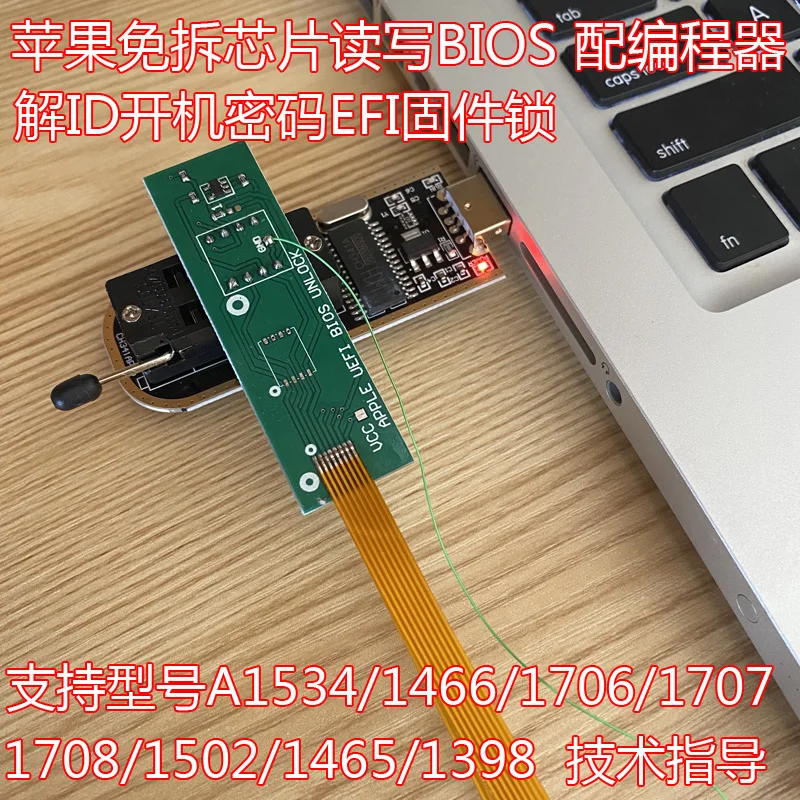

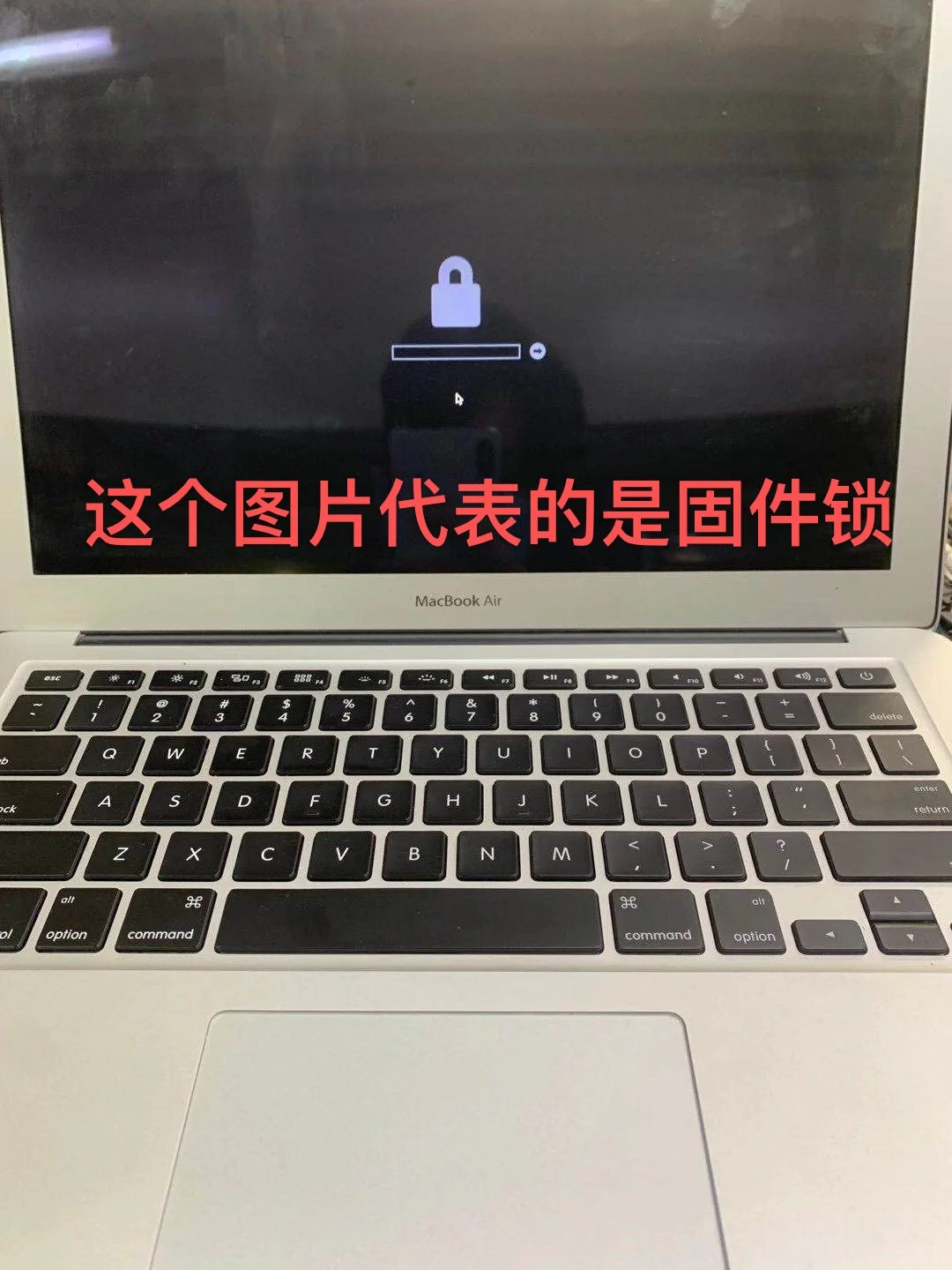

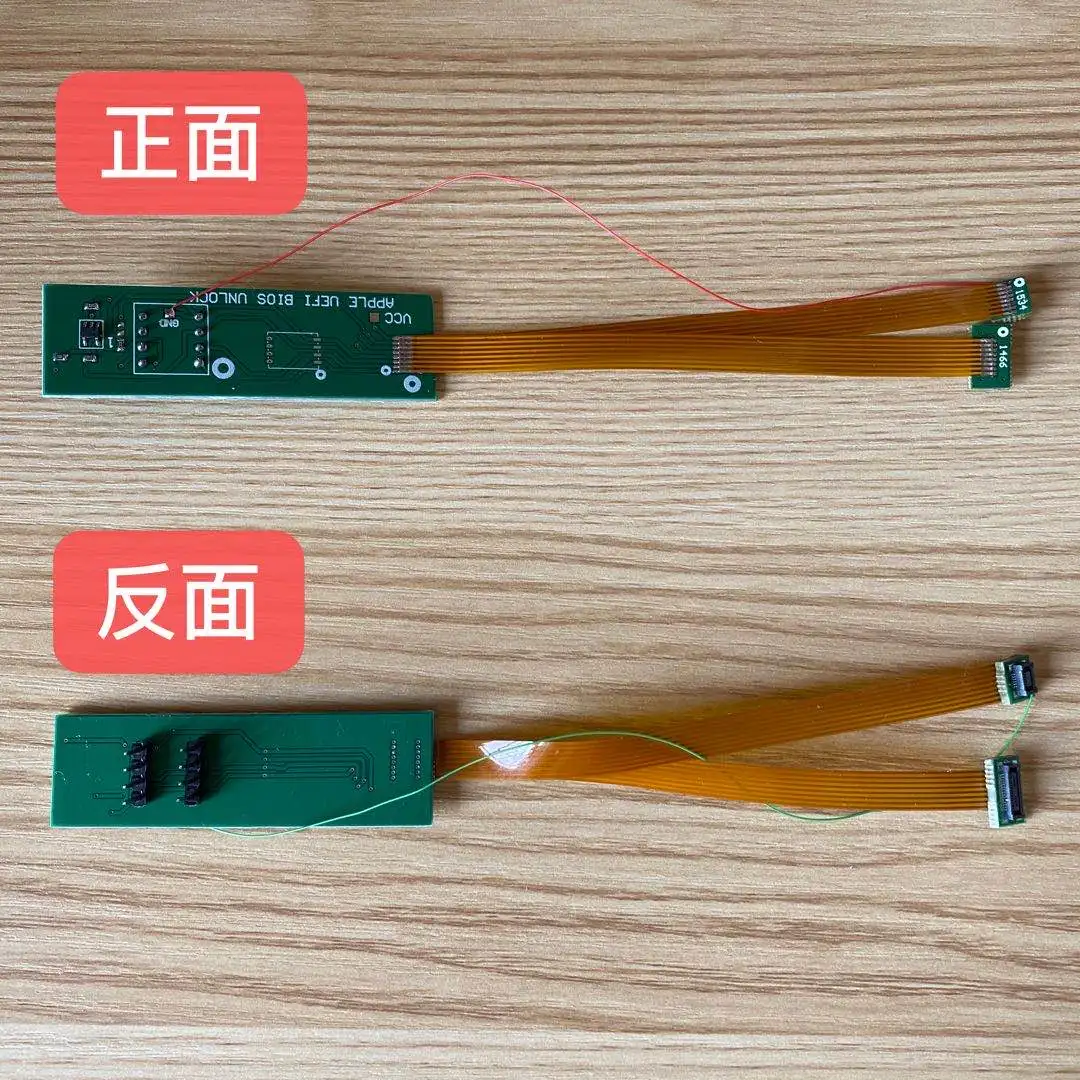

Apple’s disassembly-free chip reads and writes BIOS flashing machine, EFI solution ID power-on password PIN firmware lock
Support model: A1534/1465/1466/1706/1707/1502/1708/, shipped with a programmer! Other programmers are not supported!
The use is very simple: first buckle the interface, then power on the motherboard, and then flash it!
Model selection 25Q64 Winbond

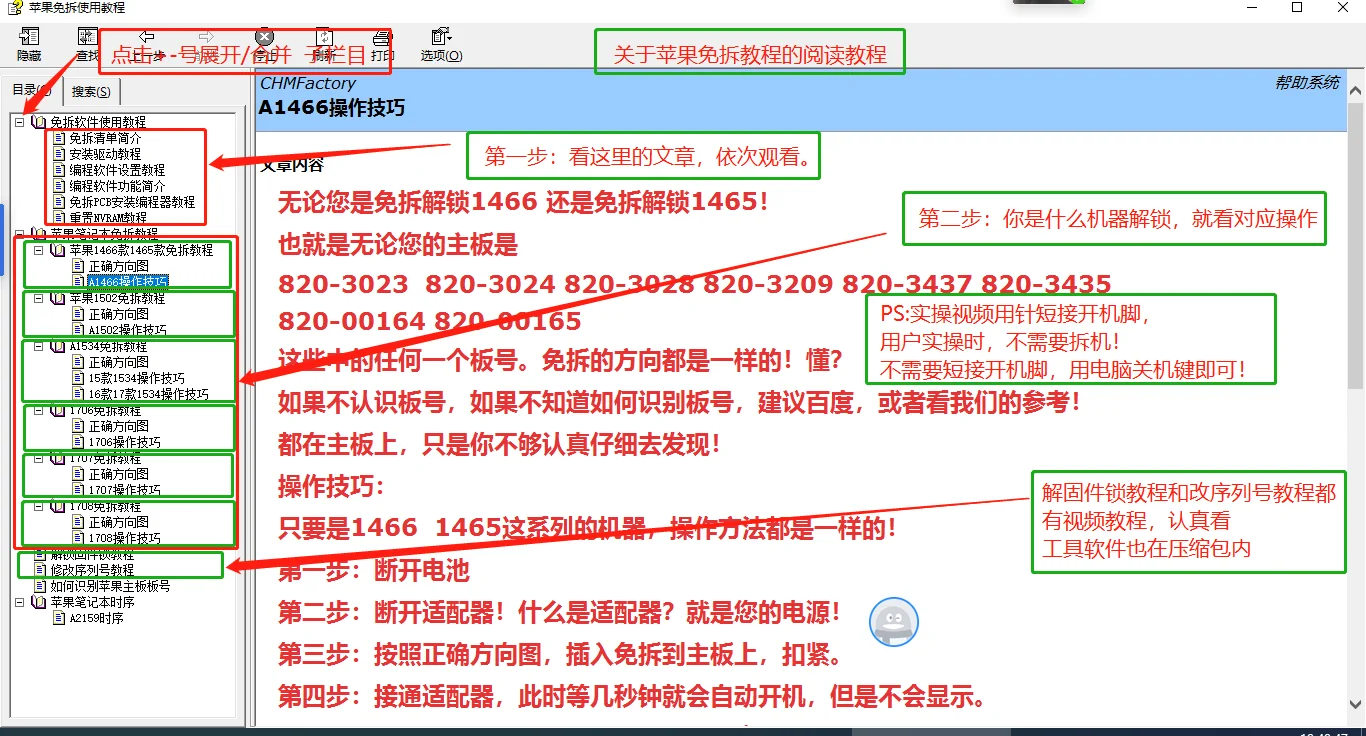

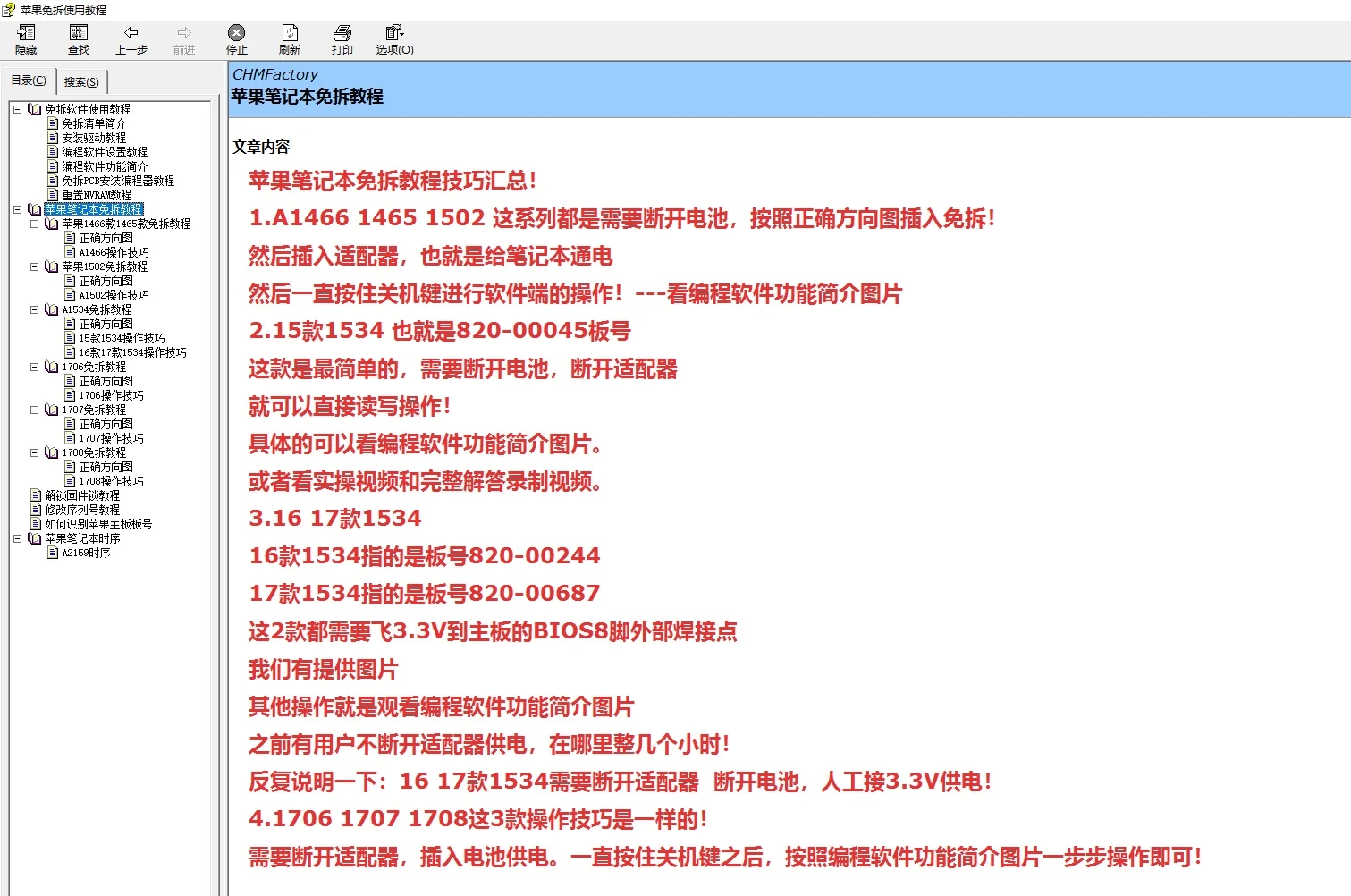

Tutorial of debugging equipment before using free disassembly!

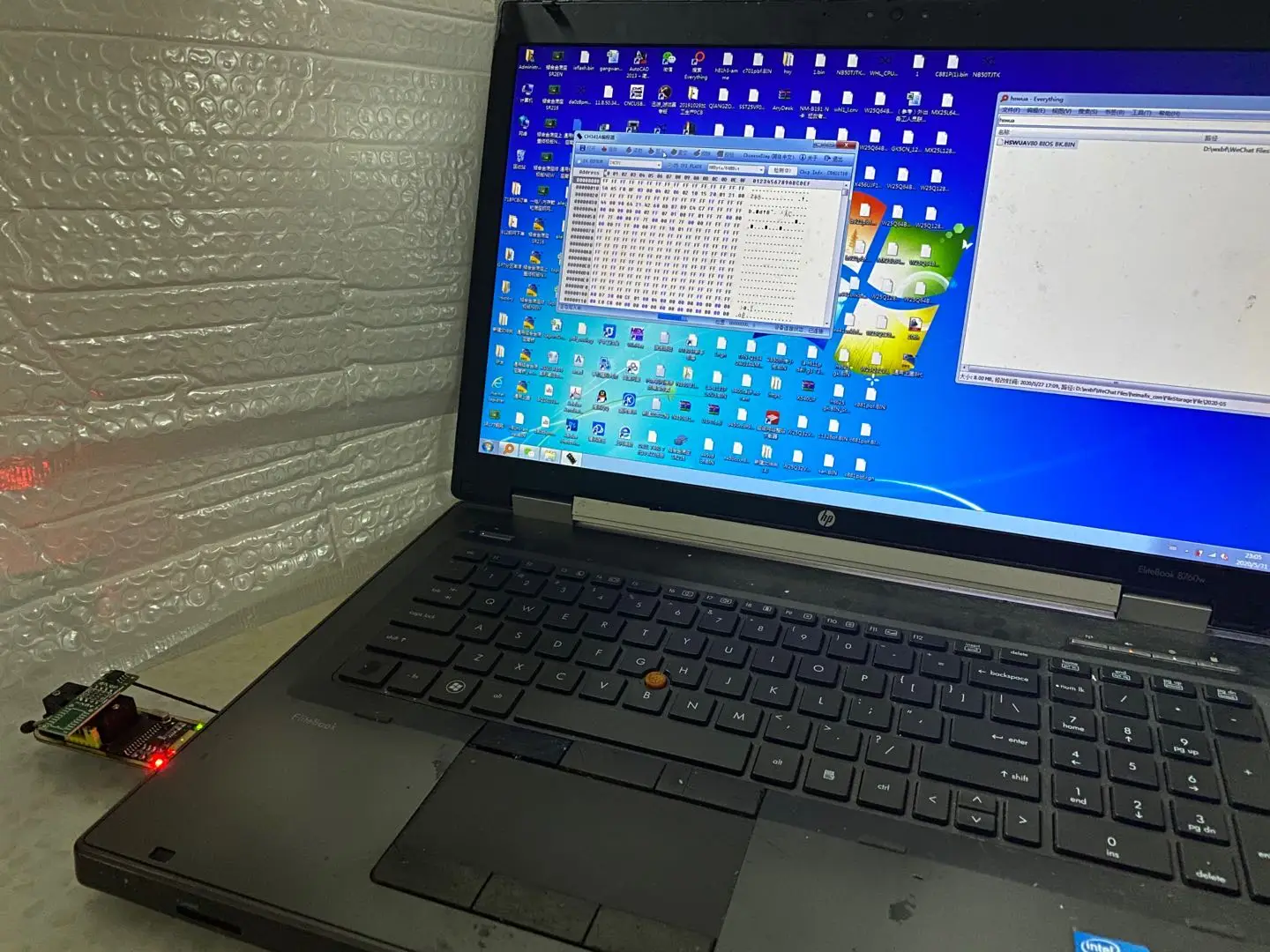

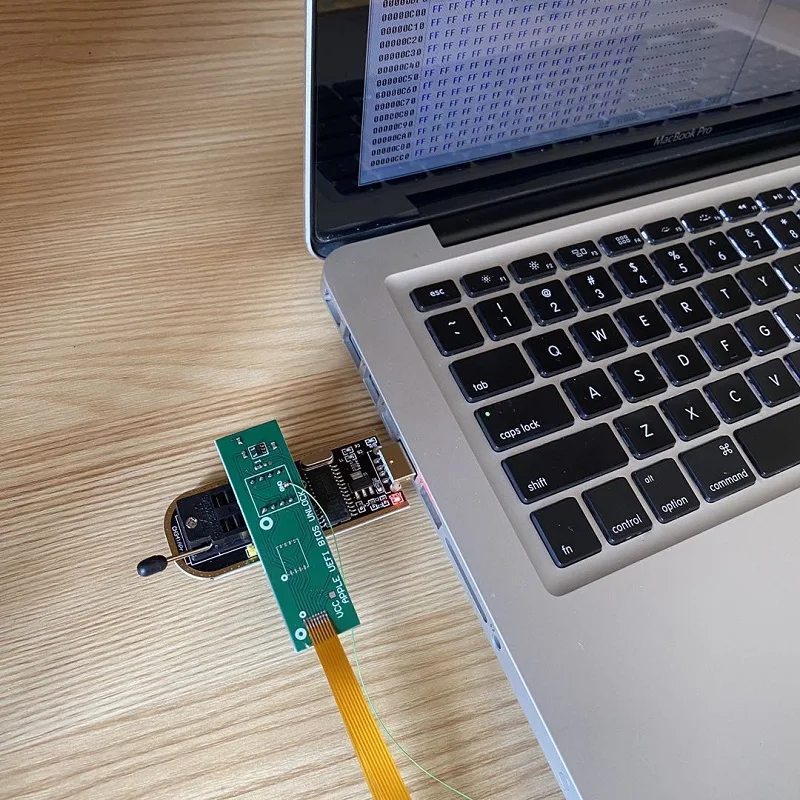

Connect the CH341 programmer directly to the computer, and solder a BIOS chip directly to the reader socket. After installation, ask the customer service for the programmer software.

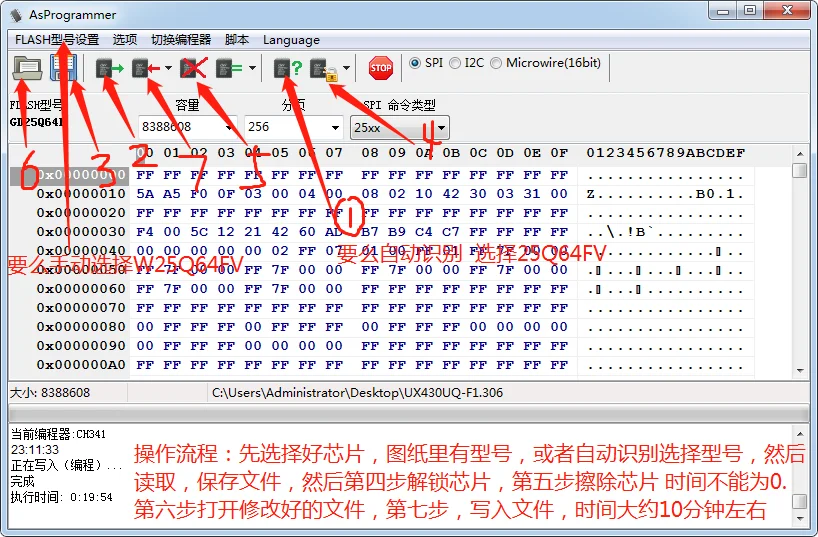

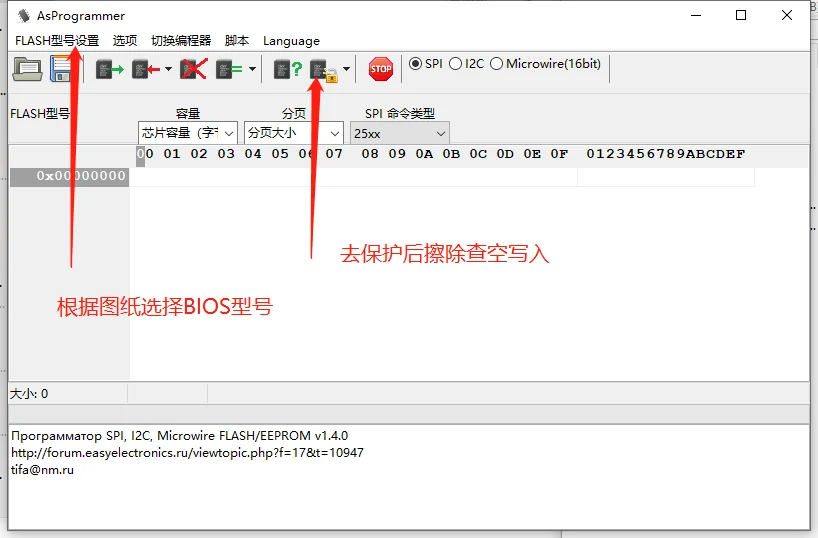

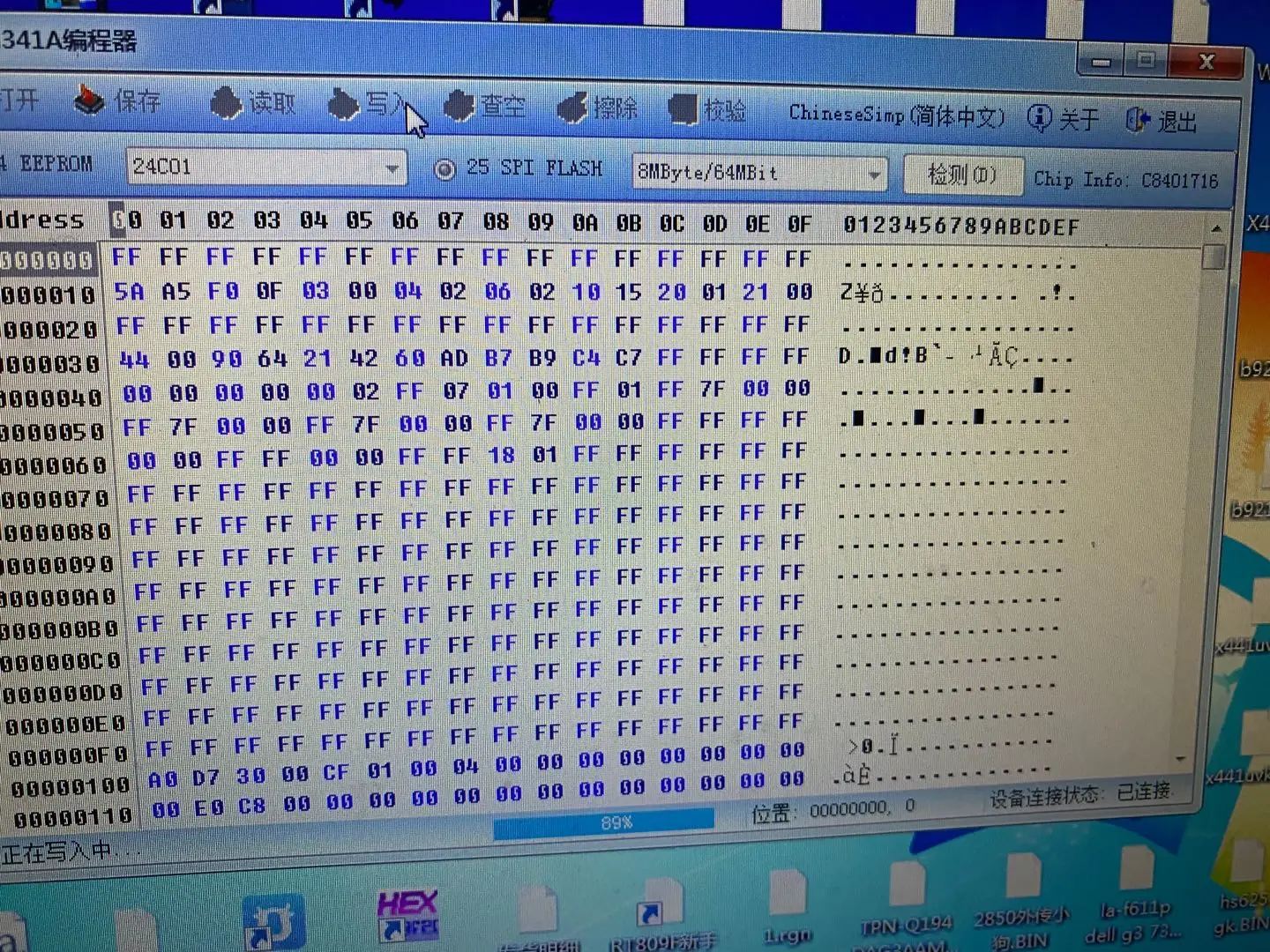

1: Choose 25 series chips, choose 8M capacity. Then click [Detect], which is equivalent to the automatic recognition of RT809 programmer, remember!
[Detection] CHIP INFO at the back: The ID of the chip must be identified here, otherwise the reading and writing will not succeed.
2: Read the BIOS according to the conventional programmer-save the BIOS-open the BIOS file that needs to be written-write the BIOS [The normal read and write succeeds, it is considered qualified for debugging. Otherwise, don’t connect to the motherboard without disconnection]

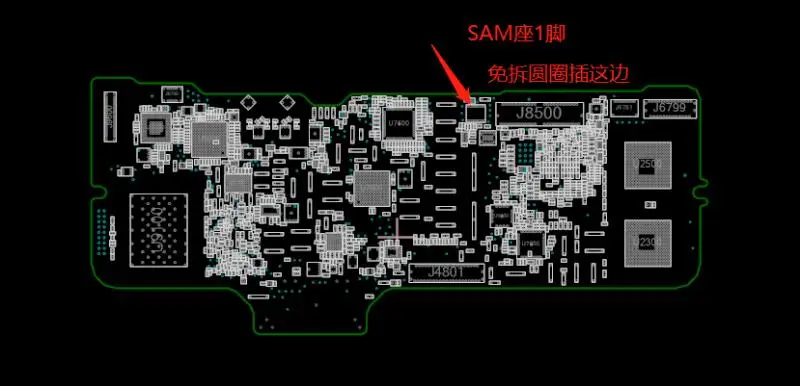

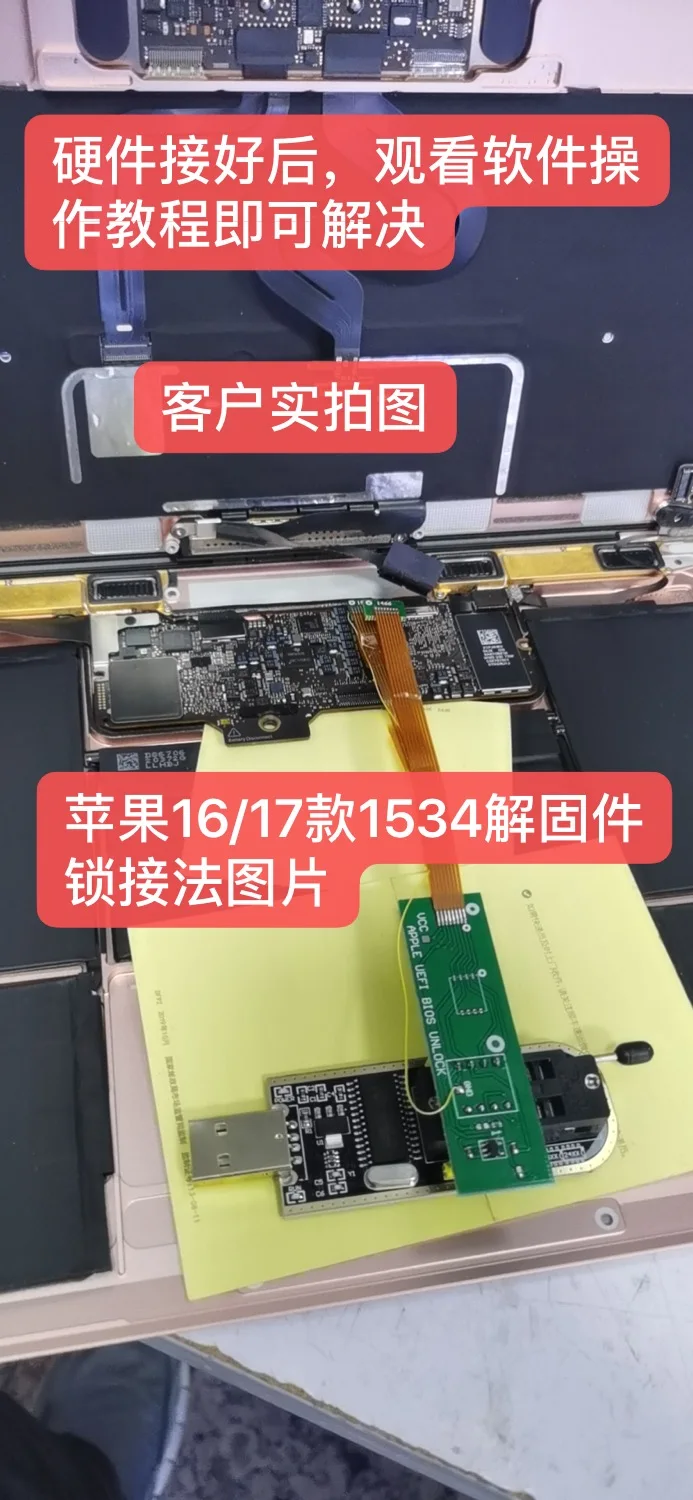

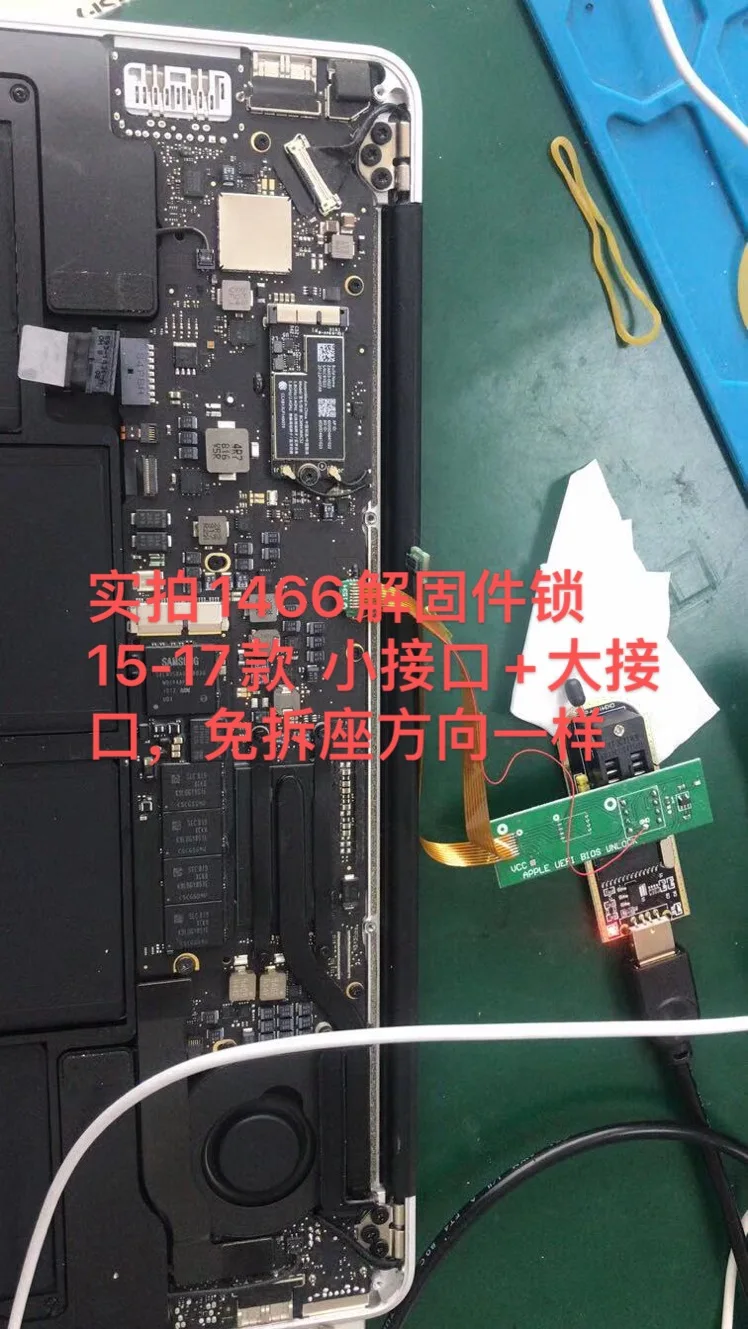

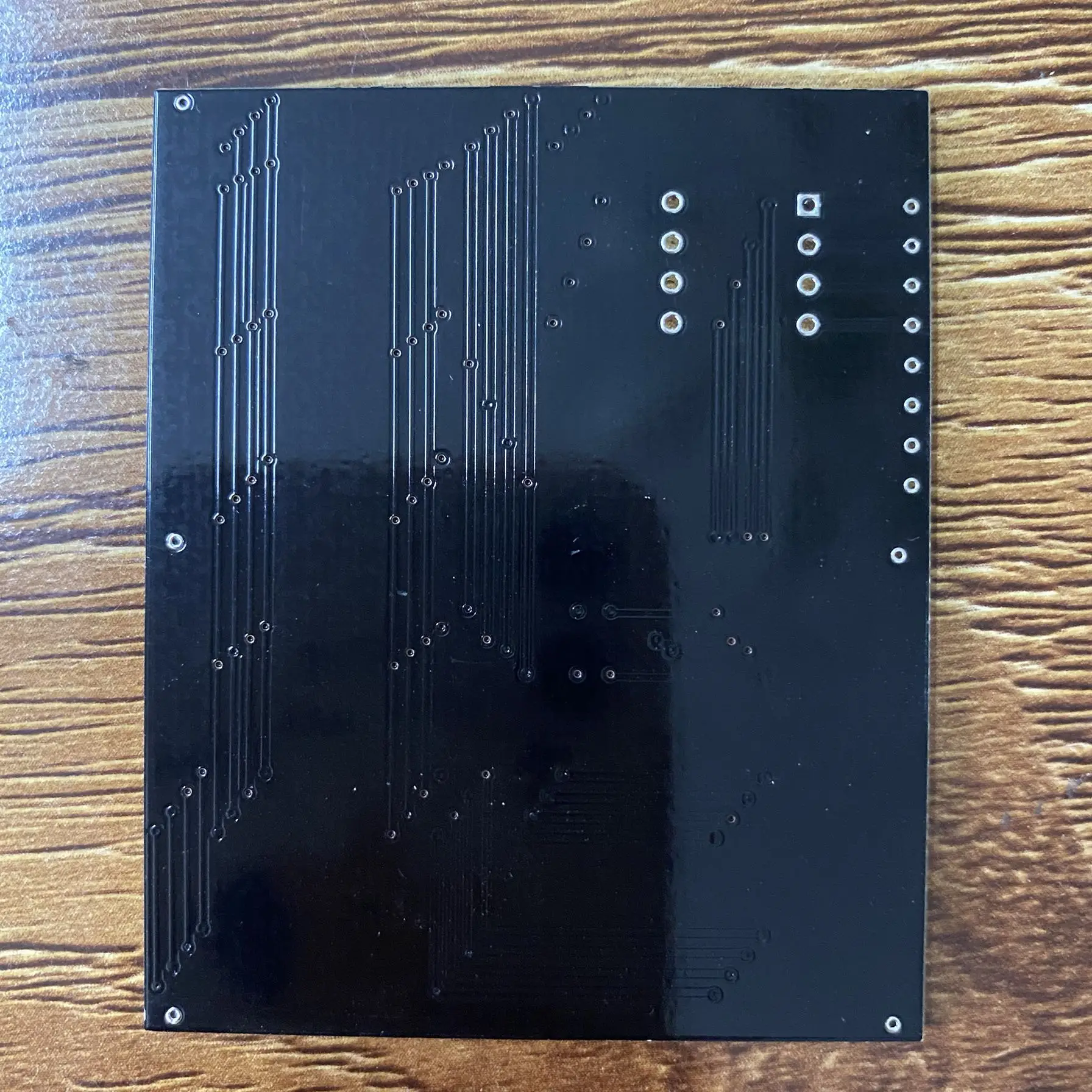

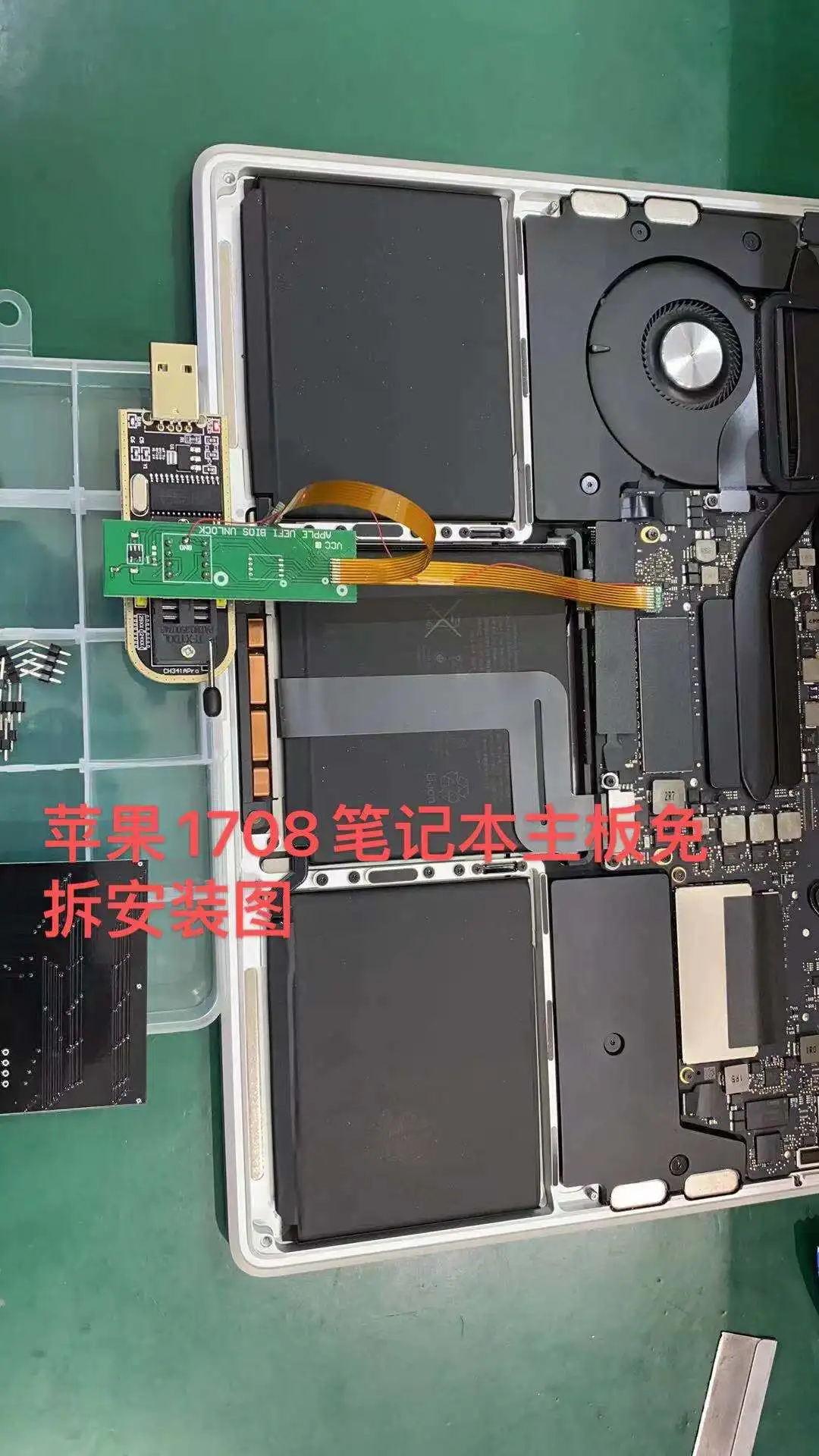

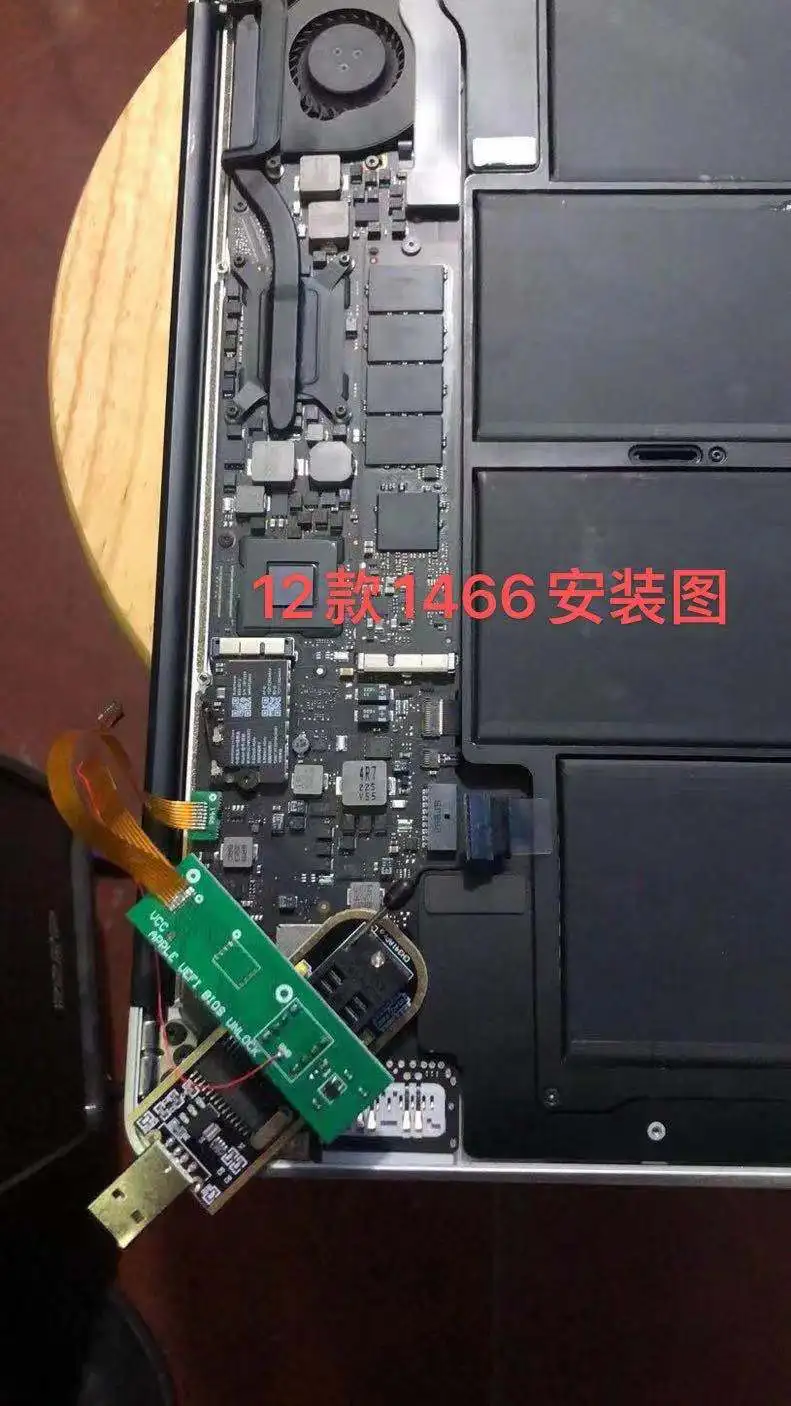

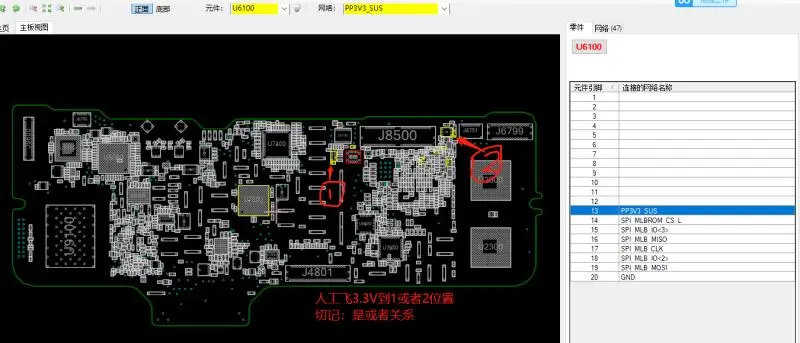

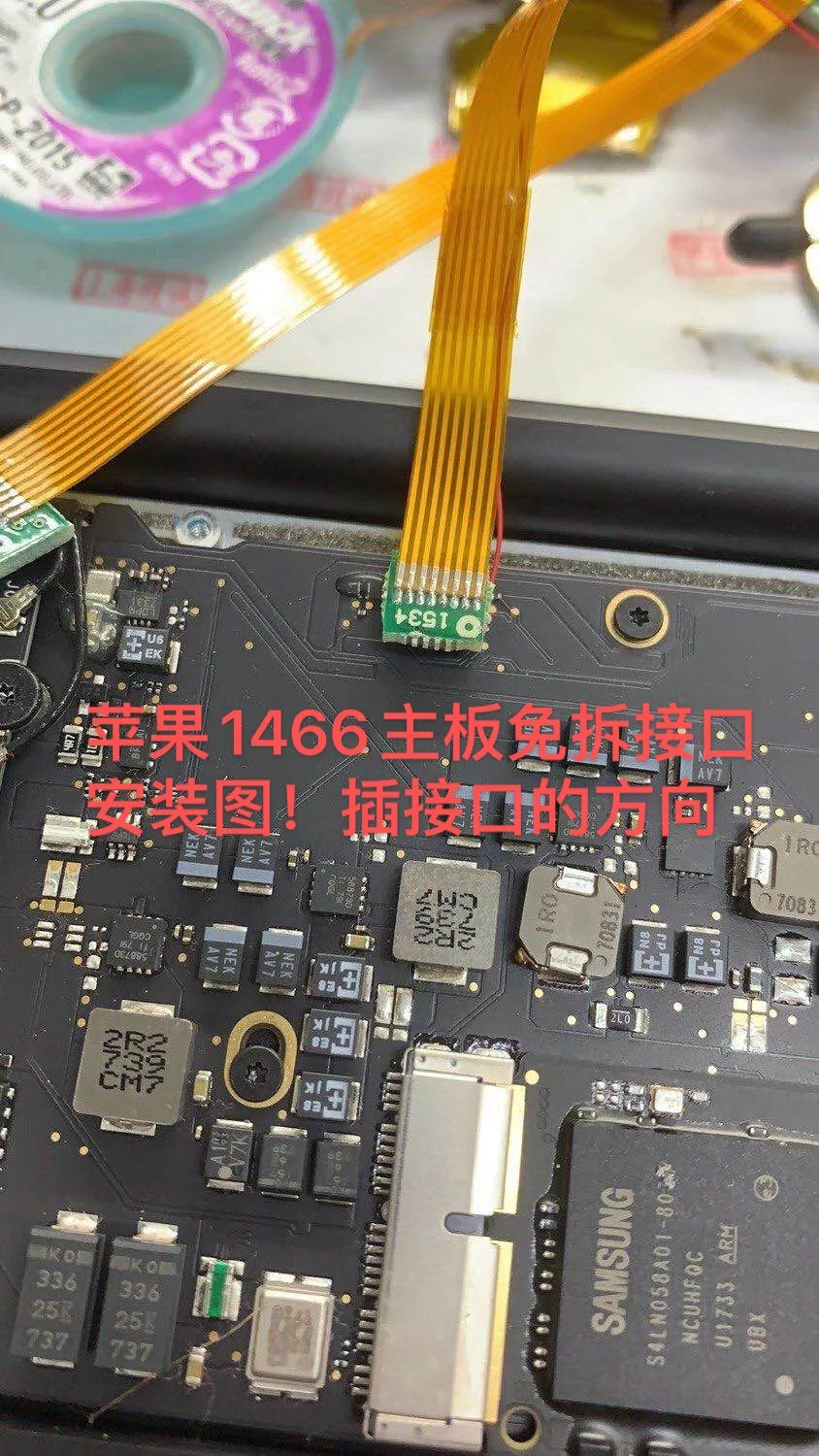

When you debug OK, you can install the free wire, the circle on the free interface board corresponds to the 1-pin of the motherboard, after plugging in the interface, then the motherboard is powered on, and then read and write according to the above debugging process. Up.
Some machines need to be turned off after being turned on for reading and writing.
