Grow-optical Fingerprint Módulo Sensor Reader Interface Uart Usb para Controle de Acesso R307s Dc4.26v ou Dc3.3v 1000 Capacidade
Dispositivo de Reconhecimento de Impressão Digital
Vídeo de Demonstração do Produto
Opção de Compra e tempo de entrega
Ficha técnica do produto
| Características | Especificações |
|---|---|
| Número do Modelo | R307s |
| Nome da Marca | Grow |
| Origem | CN (origem) |
| Plataforma de Casa Inteligente | Outro |
| Interface | Usb1.1 AND Uart |
| Dimension | 52*20*22 MM |
| Image Capture Surface | 15*11 MM |
| Fingerprint Capacity | 1000 |
| Voltage | DC 4.2-6.0 (OR 3.3v) |
| Resolution | 500 DPI |
| Backlight | Blue |
GROW R307S Finger Touch Function Optical fingerprint Module Sensor Reader
Mian Function:
1. Integrated image collecting and algorithm chip together, ALL-in-One
2. Fingerprint reader can conduct secondary development, can be embedded into a variety of end products
3. Users can conduct secondary development, can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks
4. Low power consumption, low cost, small size, excellent performance
5. Professional optical technology, precise module manufacturing technics
6. Good image processing capabilities, can successfully capture image up to resolution 500 dpi
7. Finger detection function.
8. R307S use different chip when compare to R307.
Specification:
|
SPECIFICATION |
|
|
Model |
R307S |
|
Type |
Optical Fingerprint Module |
|
Interface |
USB,UART(RS232 TTL) |
|
Resolution |
508 DPI |
|
Voltage |
DC 4.2-6V |
|
Fingerprint Capacity |
1000 |
|
Sensing array |
648*488 pixel |
|
Fingerprint module size |
52*20*22 (mm) |
|
Effective collection area |
11 * 15 (mm) |
|
Finger Touch Function |
Yes |
|
Connector |
MX 1.25mm 6Pin |
|
Scanning Speed |
< 0.2 second |
|
Verification Speed |
< 0.3 second |
|
Matching Method |
1:1; 1:N |
|
FRR |
=0.1% |
|
FAR |
=0.001% |
|
Work environment |
-20C —50C |
|
Work Humidity |
10-85% |
|
Anti-static capacity |
15KV |
|
Abrasive resistance intensity |
1 million times |
|
Communications baud rate (UART): |
(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps) |
?You can download the R307S user manual from this website link:
?Here is the sdk files download link, you can download it freely.
1. Grow-optical Fingerprint Módulo Sensor Reader Interface Uart
2. Controle de Acesso
3. Aparelho de Reconhecimento de Cobre
4. Grow-optical Fingerprint Módulo Sensor Reader Interface Uart

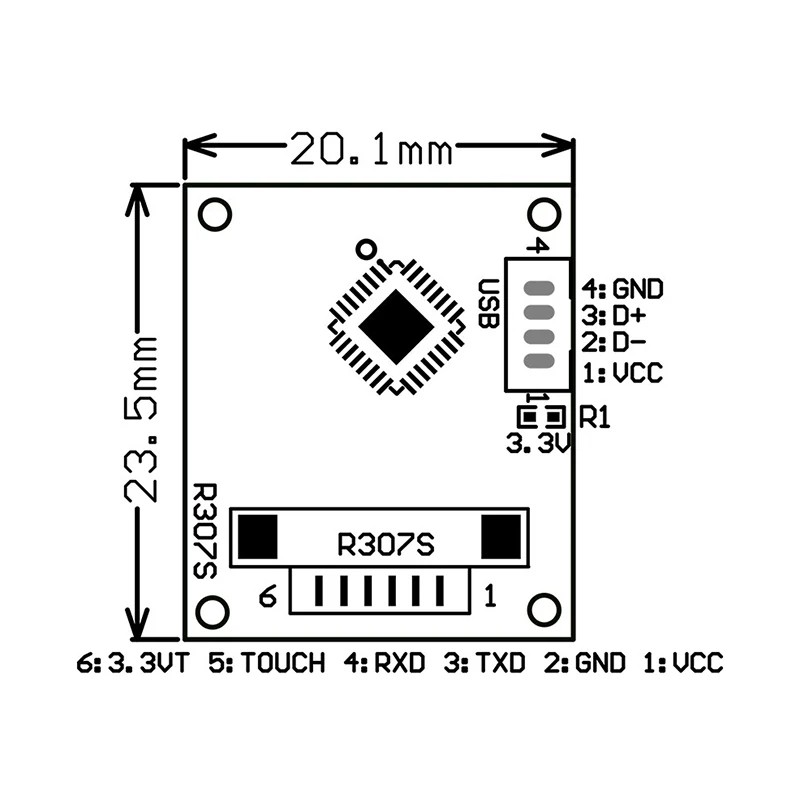

R307S fingerprint module circuit board diagram
5. Controle de Acesso
3.3VDC power may be selected to supply when short ciucuit as the following drawing.
Caution: Operating carefully, and R307S will be damaged when wong connection.
6. Aparelho de Reconhecimento de Cobre
7. Grow-optical Fingerprint Módulo Sensor Reader Interface Uart

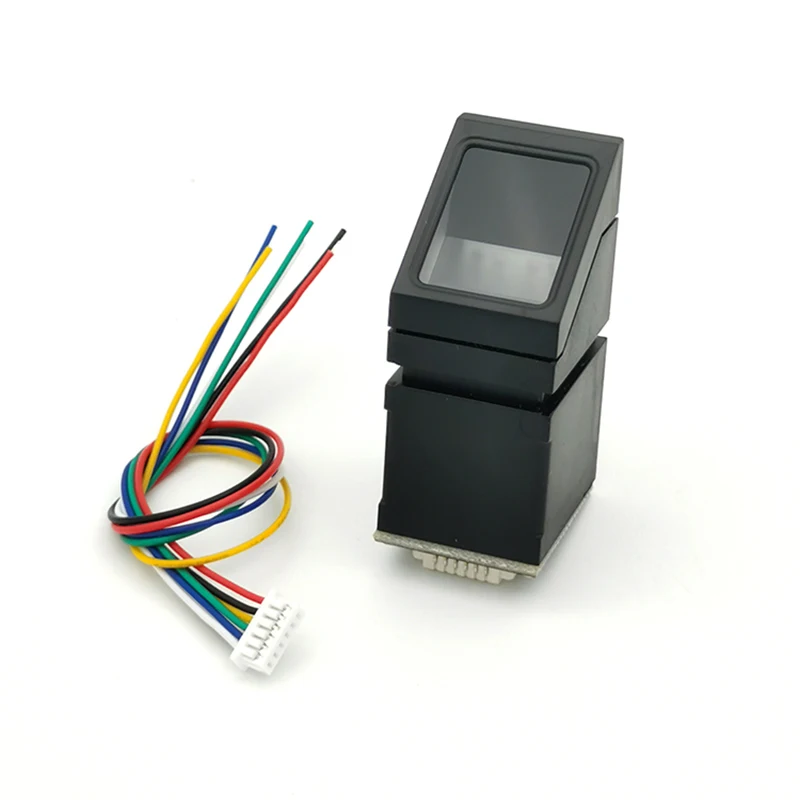

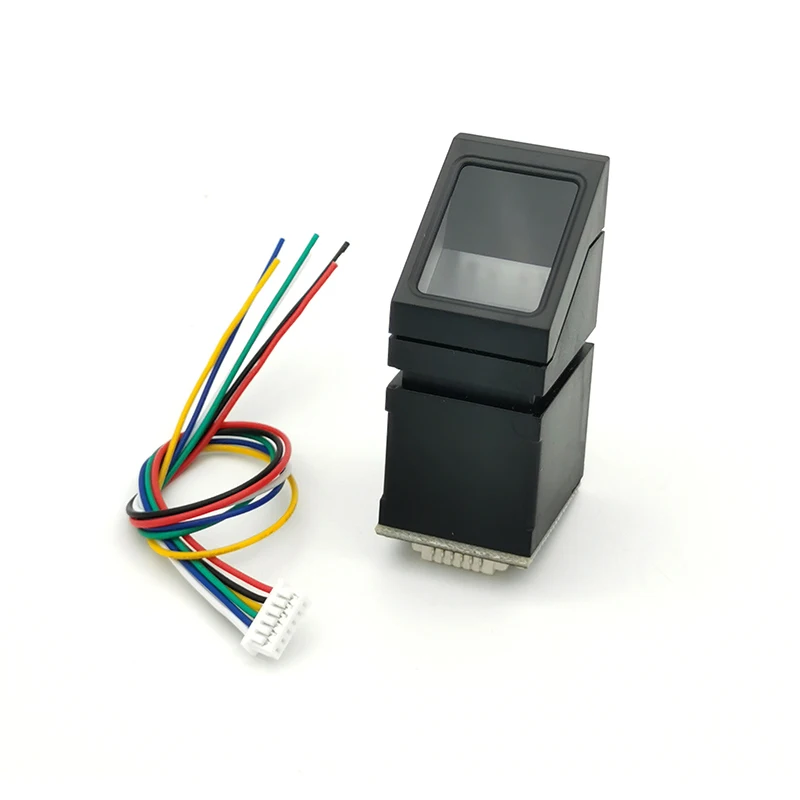

For shipping list, please see the following photo:
8. Controle de Acesso
Need to install the bracket, please click here:

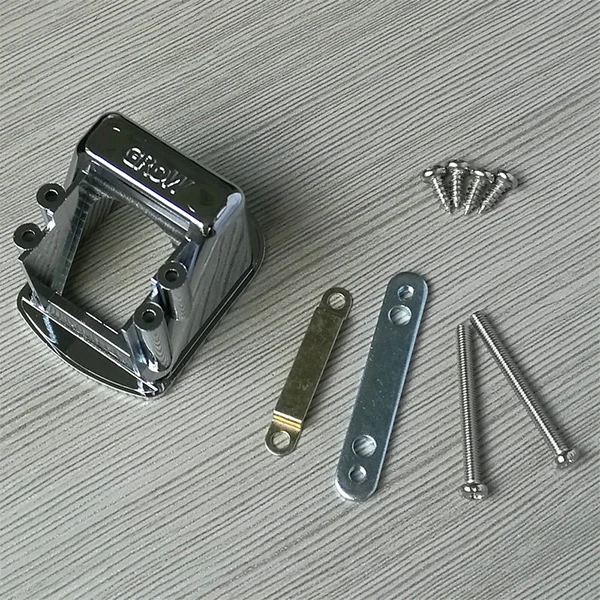

Sliver:
9. Aparelho de Reconhecimento de Cobre

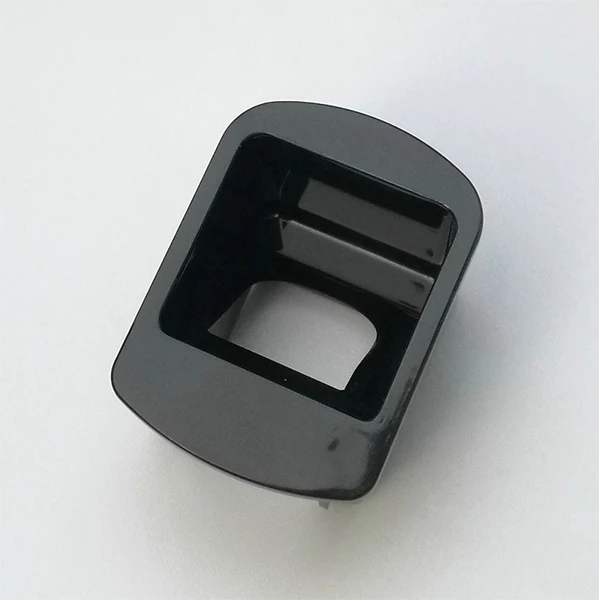

Black:
10. Grow-optical Fingerprint Módulo Sensor Reader Interface Uart
